| Category | Requirements | Results | |
|---|---|---|---|

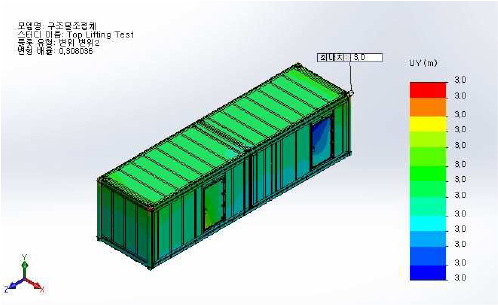

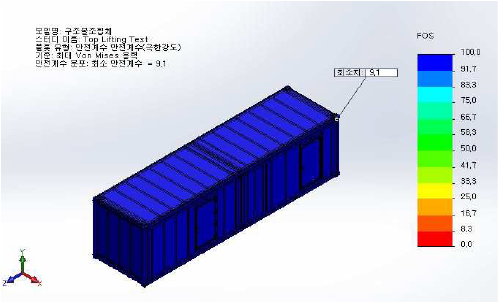

| Crane transport | Top Lifting Test | Load condition2G, Safety factor2.0 | Safety factor 9.1 > 2.0 |
| Bottom Ltfting Test | Load condition2G, Safety factor2.0 | Safety factor 6.8 > 2.0 | |
| Forklift transport | Lifting from Fork Pocket | Load condition : real load application | Safety factor 16.1 > 2.0 |
| Impact during transportation | Pot hole breaking | X:-1G, Y:0, Z:-3G | Safety factor 6.8 > 1.5 |

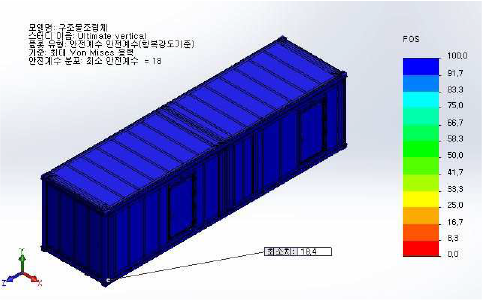

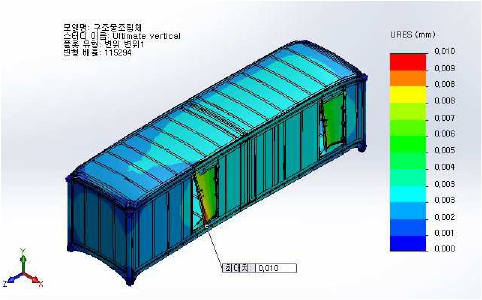

| Ultimate vertical | X:0, Y:0, Z:-3G | Safety factor 18.4 > 1.5 | |
| Pot hole cornering | Right - X :0,Y:-1G, Z:-3G | Safety factor 17.0>1.5 | |
| Left - X :0,Y:-1G, Z-3G | Safety factor 14.5 1.5 | ||
| Oblique kerb striking | Right-X: -3G, Y:-1.5G, Z:-3G | Safety factor 2.6>1.5 | |
| Left - X-3G Y:1.5G, Z:-1G | Safety factor 2.6>1.5 | ||

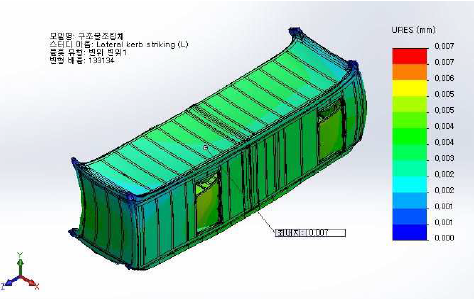

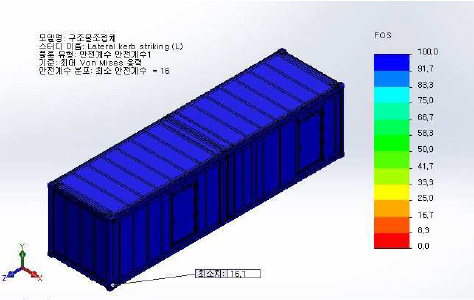

| Lateral kerb striking | Right - X :0,Y:-2G, Z:-2G | Safety factor 16.1>1.5 | |
| Left - X :0,Y:-2G, Z:-2G | Safety factor 16.1>1.5 | ||
| Roof load | Roof Strength | Load 2633kg | Safety factor 8.67>1.5 |
| HVAC mounting bracket | Load 1079.1N | Safety factor 15.81>1.5 | |
| Rack mounting bracket | Load 3629.7 | Safety factor 63.7>1.5 | |
| Cable rack | Load 4414.5N | Safety factor 45.32>1.5 | |
